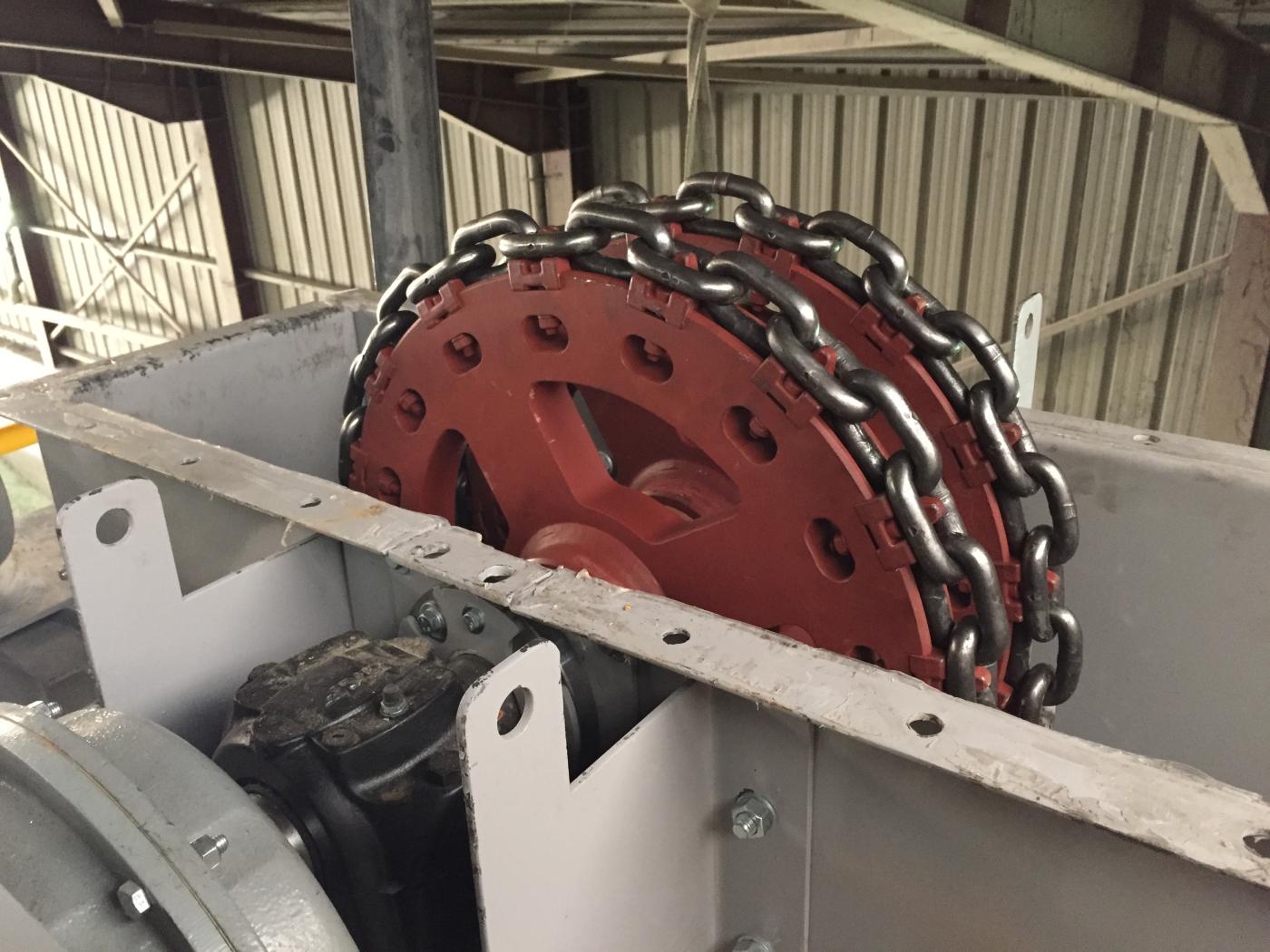

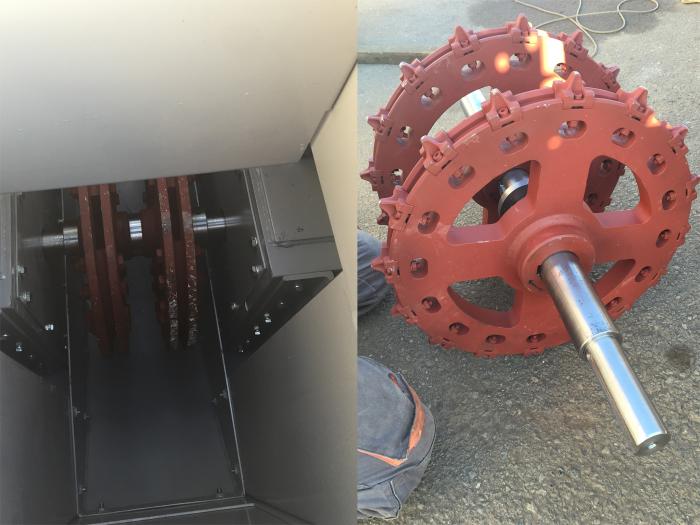

This type of Bucket Elevators is generally used in heavy duty applications and also when we face long conveying distances and heights. The Granulometry of the material has to be up to 150 mm approximately and the maximum temperature has to be below 300 0C. There are lots of accessories that accompanies the Chain Bucket Elevator such as dust sealing, Head service platform, self-alignment sets, counterweight and automatic tension devices, self-cleaning Boot , several cleaning and pre cleaning systems, safety sensors (pull rope switches, speed sensor, belt misalignment sensors, inlet and outlet hopper choke and level sensors), lots of choices in driving systems ( Helical bevel Gear Reducer with Hydraulic Coupling , Parallel shaft Gear Reducer with Taper Lock, Parallel shaft Gear Reducer with SPB Belts driven etc.), Rock Box Feed Chute or Plain Feed Chute, Outlet Hopper Rock Box type or Plain, Lining in inlet or outlet hopper, Rubber Skirting Systems, Tail Sprockets with lining , Head Sprockets with lining, Great Variety of Buckets in terms of shape, Great Variety of Chains Specifications and plenty more. Also the Chain Bucket Elevator may be delivered in Stainless Steel, Hot Deep Galvanised Steel, and Sand Blasted Steel Structure with all the types of painting included in our variety.
